Serve LoRA adapters on a shared pool

A company wants to serve LLMs for document analysis and focuses on audiences in multiple languages, such as English and Spanish. They have a fine-tuned LoRA adapter for each language, but need to efficiently use their GPU and TPU capacity. You can use Gateway API Inference Extension to deploy dynamic LoRA fine-tuned adapters for each language (for example, english-bot and spanish-bot) on a common base model and accelerator. This lets you reduce the number of required accelerators by densely packing multiple models in a shared pool.

How

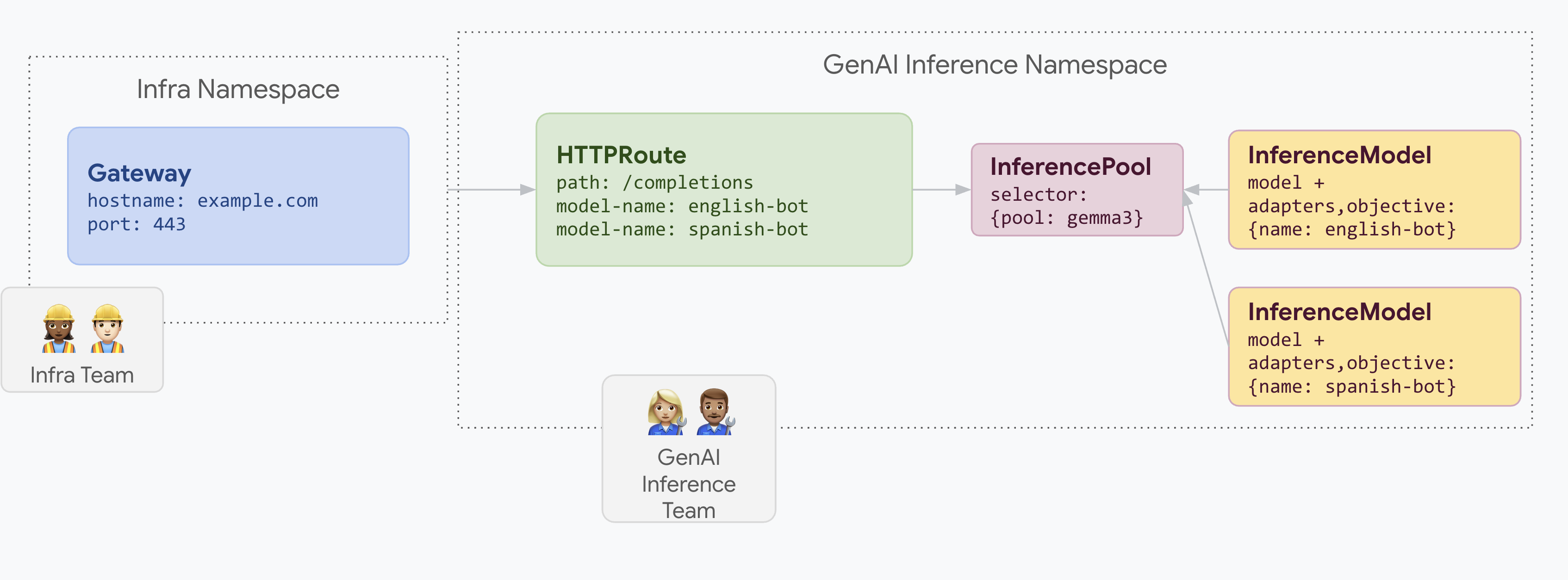

The following diagram illustrates how Gateway API Inference Extension serves multiple LoRA adapters on a shared pool. This example illustrates how you can densely serve multiple LoRA adapters with distinct workload performance objectives on a common InferencePool.

apiVersion: gateway.networking.x-k8s.io/v1alpha1
kind: InferencePool
metadata:
  name: gemma3
spec:
  selector:
    pool: gemma3

Let us say we have a couple of LoRA adapters named “english-bot” and “spanish-bot” for the Gemma3 base model. You can create an InferenceModel resource and associate these LoRA adapters to the relevant InferencePool resource.
In this case, we associate these LoRA adapters to the gemma3 InferencePool resource created above.

apiVersion: inference.networking.x-k8s.io/v1alpha2
kind: InferenceModel
metadata:
  name: english-bot
spec:
  modelName: english-bot
  criticality: Standard
  poolRef:
    name: gemma3

---
apiVersion: inference.networking.x-k8s.io/v1alpha2
kind: InferenceModel
metadata:
  name: spanish-bot
spec:
  modelName: spanish-bot
  criticality: Critical
  poolRef:
    name: gemma3

Now, you can route your requests from the gateway using the HTTPRoute object.

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: inference-gateway
spec:
  listeners:
  - protocol: HTTP
    port: 80
    name: http

---
kind: HTTPRoute
apiVersion: gateway.networking.k8s.io/v1
metadata:
  name: routes-to-llms
spec:
  parentRefs:
    - name: inference-gateway
  rules:
  - matches:
      path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: gemma3
      kind: InferencePool

Try it out

1. Get the gateway IP:

   IP=$(kubectl get gateway/inference-gateway -o jsonpath='{.status.addresses[0].value}'); PORT=80


2. Send a few requests to model "english-bot" as follows:

   curl -i ${IP}:${PORT}/v1/completions -H 'Content-Type: application/json' -d '{
   "model": "english-bot",
   "prompt": "What is the color of the sky",
   "max_tokens": 100,
   "temperature": 0
   }'


3. Send a few requests to model "spanish-bot" as follows:

   curl -i ${IP}:${PORT}/v1/completions -H 'Content-Type: application/json' -d '{
   "model": "spanish-bot",
   "prompt": "¿De qué color es...?",
   "max_tokens": 100,
   "temperature": 0
   }'
